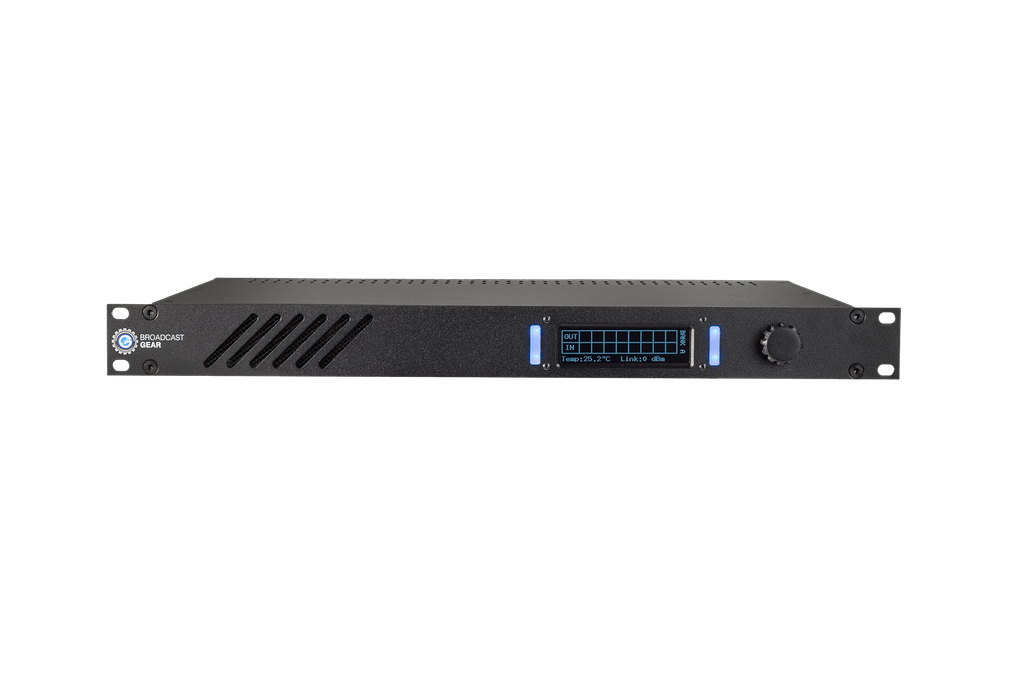

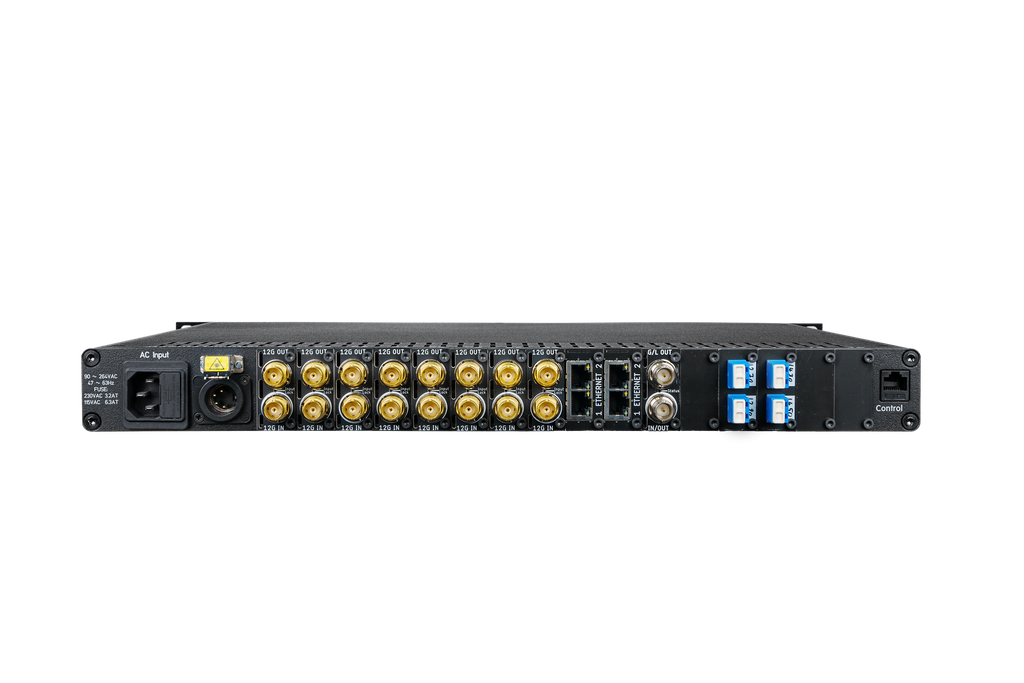

Modulair mux frame 4/8/16


Our Fiber Muxer line is modular build so it has the most flexible setup to accommodate the user needs.
It offers the possibility to upgrade the Muxer in a later stadium with additional Modules as long as the Frame is not yet full.

You choose a frame that will hold X modules.  And scroll below and choose the modules you want to add to your muxer.
We offer 4 type of Frames:
BG-FMINI          Mini Compact half 19" 1U unit for 4 Modules                      € 1540
BG-Frame4       19" 1U Enclosure with room for 4 Modules.                        € 1815
BG-Frame8       19" 1U Enclosure with room for 8 Modules.                        € 2420
BG-Frame16      19" 1U Enclosure with room for 16 Modules.                      € 3355


Features:

  • 19" housing 1RU high
  • OLED Status display for fiberstatus and all In & Output connections.
  • Remote Network Status dashboard that allows remote status indication of all mux units via your webbrowser.
  • Dual Power capability. Main and XLR4. Also works as redundancy power input.
  • Fiber connection on LC. But on request other connectors can be build in at the cost of 2 module spaces.



Some Example sets we delivered lately,  Prices are for a set of 2 boxes  running on 2 fibers! :

- Frame16 with    16x 12G-SDI bi-directional   16 IN +  16 OUT              € 29.750
- Frame16 with    16x  3G-SDI bi-directional    16 IN + 16 OUT               €  19.510
- Frame16 with    12x 12G-SDI Bi-directional + 2x ETH + Genlock         € 26.180
- Frame8  with    6x 12G-SDI Bi-directional + 2x ETH + Fiber UPG        € 14.640
- 8KMini   with    4x 12G-SDI Bi-directional + Ethernet on Neutrik         €   9.800


Modules

You can choose from a range of different Modules that can be added to the Fiber Mux Frames.
All modules are Bus powered and communicate with the Frontpanel trough the Bus system for status and config information.
Each module takes 1 slot on a frame. Unless otherwise stated.

You can choose from a range of modules:

  •   12G-SDI  Bi-directional Module

  •   3G-SDI  Bi-directional Module

  •   Dual Gigabit Network Module

  •   Single 10Gigabit Network Module
  •   SFP Plugable module

  •   Sync Genlock BB / Tri-level Module

  •   Dual RS422 Data + GPIO Module

  •   LC port panel

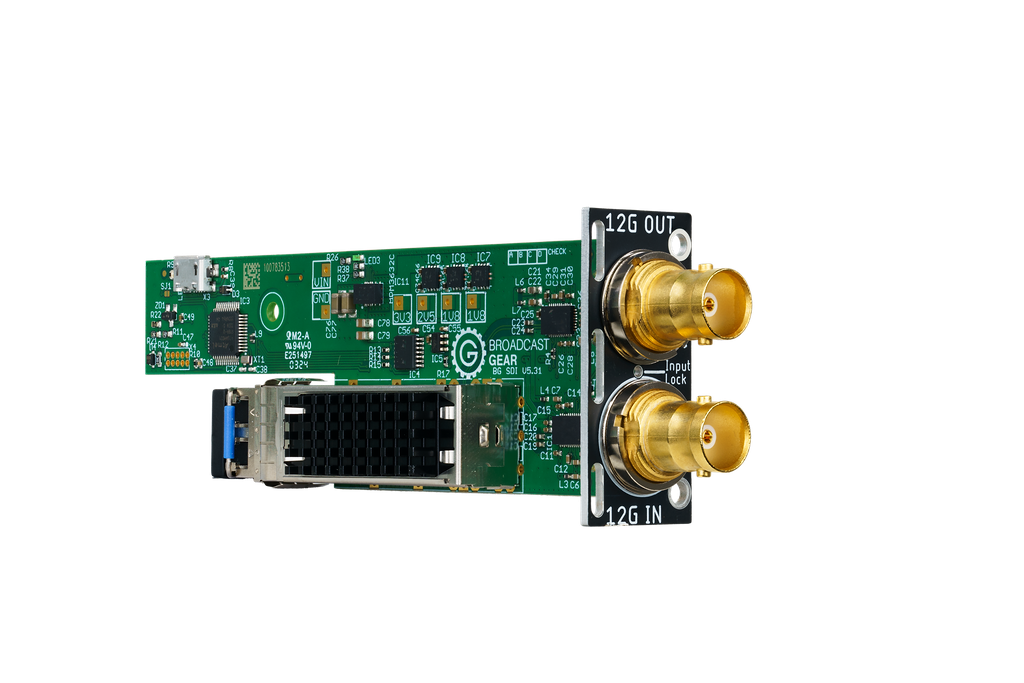

12G-SDI  Bi-directional Module

#M-12G-S          € 720

12G-SDI input  to fiber.
12G-SDI output from fiber.
The SDI module is full 2 way.
12G-SDI, 6G-SDI, 3G-SDI, HD-SDI, SD-SDI, MADI (auto switching)
Supports ST2082-1, ST2081-1, ST424, ST292, ST259, ST424, ST292, ST259


Video Standards:
• 4K/UHD 12G/6G / 2160p 23.98/24/25/29.97/30/48/50/59.94/60
• 2K/HD 3G / 1080p 23.98/24/25/29.97/30/48/50/59.94/60
        1080i 50/59.94/60
        1080PsF 23.98/24/25/29.97/30
        720p 23.98/24/25/29.97/30/48/50/59.94/60
• SD 525i29.97 NTSC, 625i25 PAL

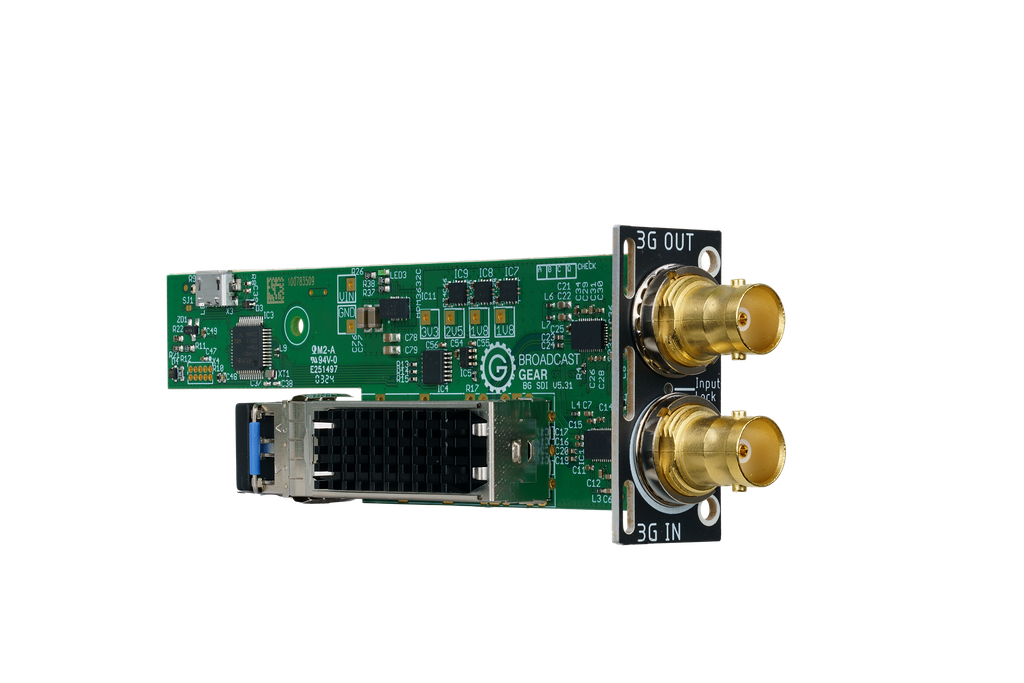

3G-SDI Bi-directional Module

#M-3G-S          € 400

3G-SDI input to fiber.
3G-SDI output from fiber.
The SDI module is full 2 way.
3G-SDI, HD-SDI, SD-SDI, MADI (auto switching)
Supports ST424, ST292, ST259, ST424, ST292, ST259


Video Standards:
• 2K/HD 3G / 1080p 23.98/24/25/29.97/30/48/50/59.94/60
       1080i 50/59.94/60
       1080PsF 23.98/24/25/29.97/30
       720p 23.98/24/25/29.97/30/48/50/59.94/60
• SD 525i29.97 NTSC, 625i25 PAL

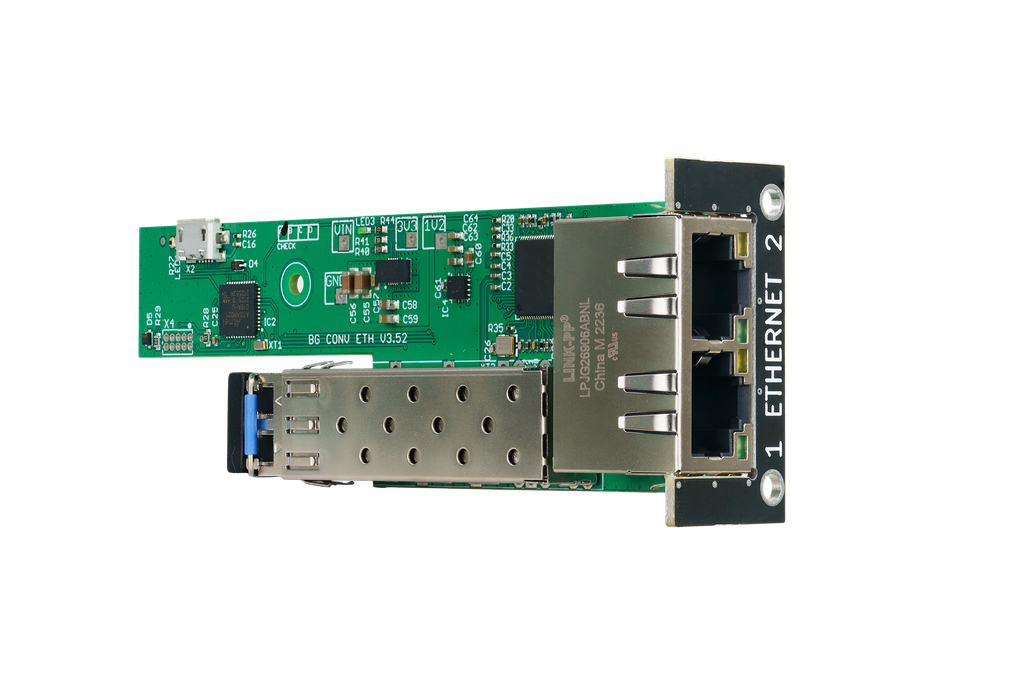

Dual Gigabit Network Module

#M-2ETH          € 280

A dual port switched 1Gbit network module
Both ethernet ports share 1x 1,25Gbit/s Fiber SFP.
Transparant data throughput of Vlans.
Status of both ports is visible in the Frontpanel.

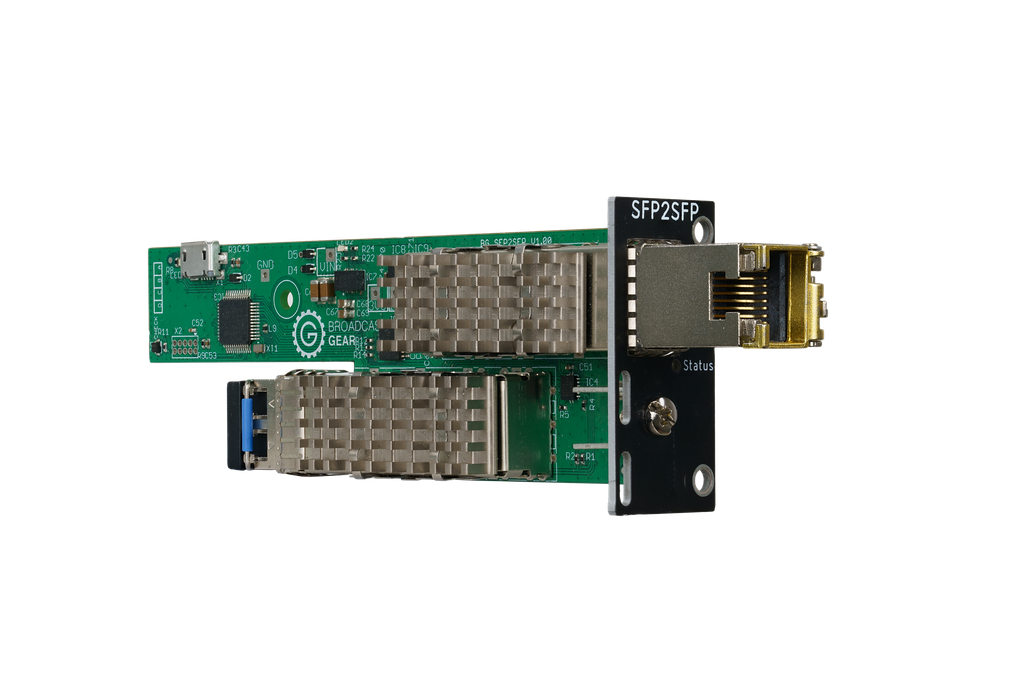

10Gigabit Network Module

#M-10GETH          € 655  ( Available from oktober 2024 )

A Single port 10Gbit network module
Data between SFP and Copper unit is reclocked for best performance.
Full speed 10Gbit/s throughput to Fiber.
Transparant data throughput of Vlans.
Status of port is visible in the Frontpanel.

10GB/s Copper module included  (max 30m cable lengte on Cat6A/7 !! )
Longer cable lengths in 10G possible on request!

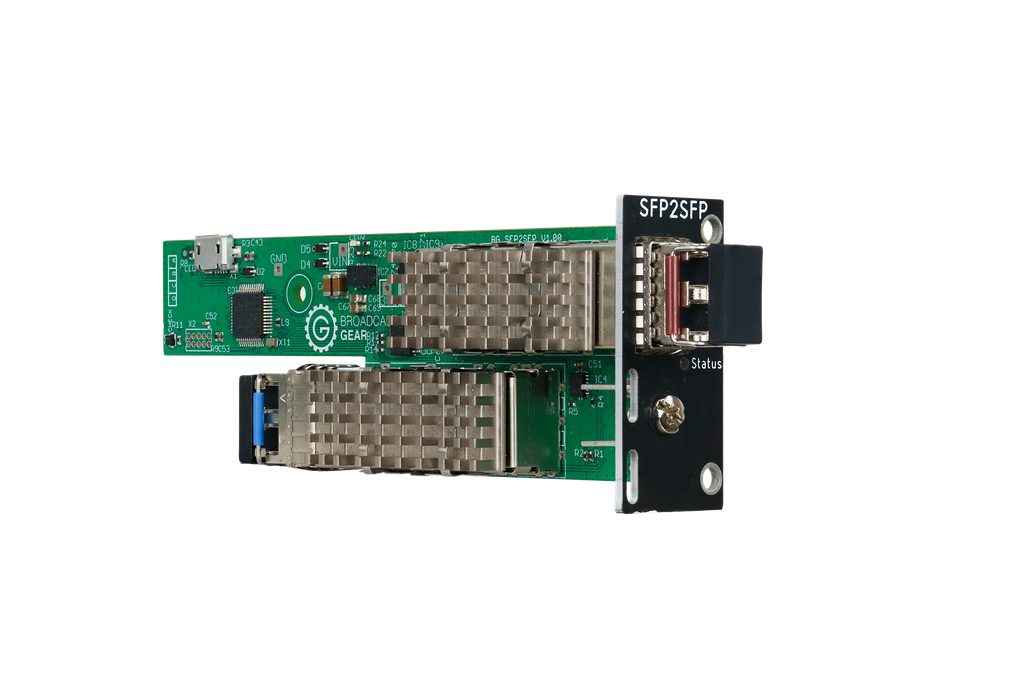

Plug-able SFP Module

#M-PlugSFP          € 545 ( Available from oktober 2024 )

A Single port SFP port that can handle up to 12GB/s of data.
Data between SFP units is reclocked for best performance.

Can be used to do one of the following setups:
- Plugable DAC cable to network Switch.
- 10G Fiber connection to a Switch or different hardware.
- Add Multimode links to your Fiber mux
- Add Fiber connections of the same frequency to merge onto CWDM.

Transparant data throughput.
Status of port is visible in the Frontpanel.

No external SFP included.  Only the CWDM that is inside the box.

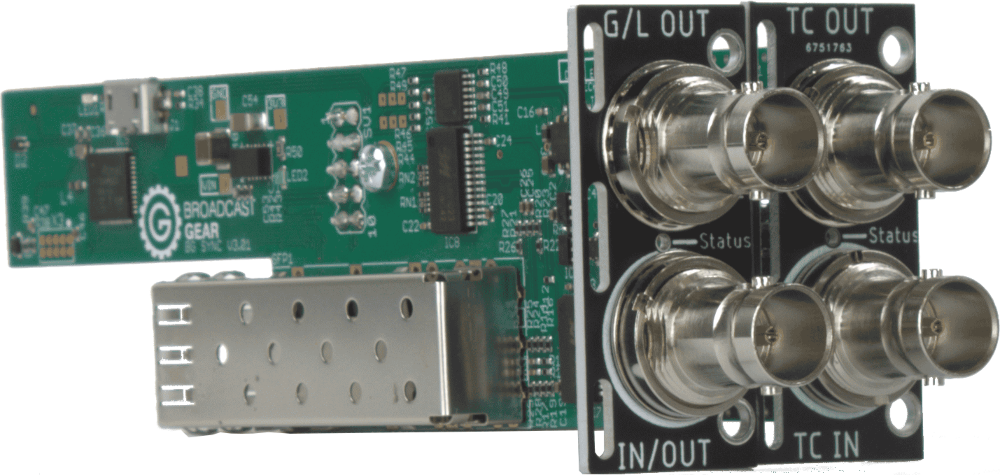

Sync Genlock BB / Tri-level Module

#M-Sync        € 535

Genlock input / output board.
Transmit side: When Genlock is input at the card, the 2nd port will be loop output.

Receiving side: Both connectors set as output when signal is received from fiber.

Blackburst, Tri-level and Composite Video compatible.

Dual RS422 Data + GPIO Module

#M-Data        € -- (tbd)

This module needs 2 Physical Module spaces !!
Specs are preliminairy!!
2x RS422 bi-directional up to 1Mbps     ( on UTP connection )

On DB15 connector.
4x Gpi   General purpose input
4x Gpo  General purpose output

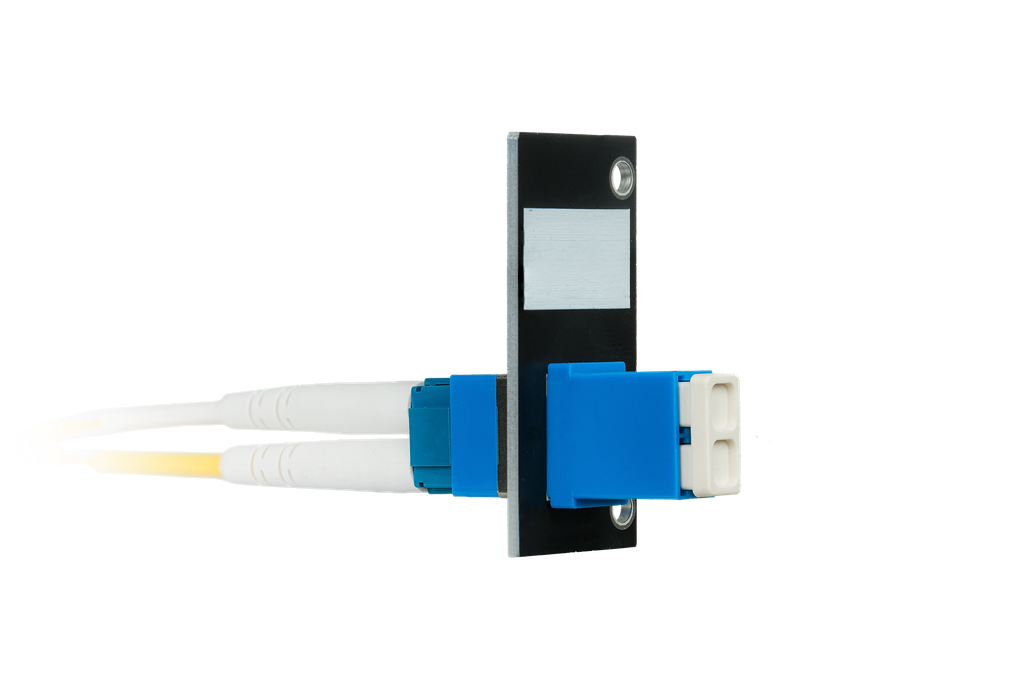

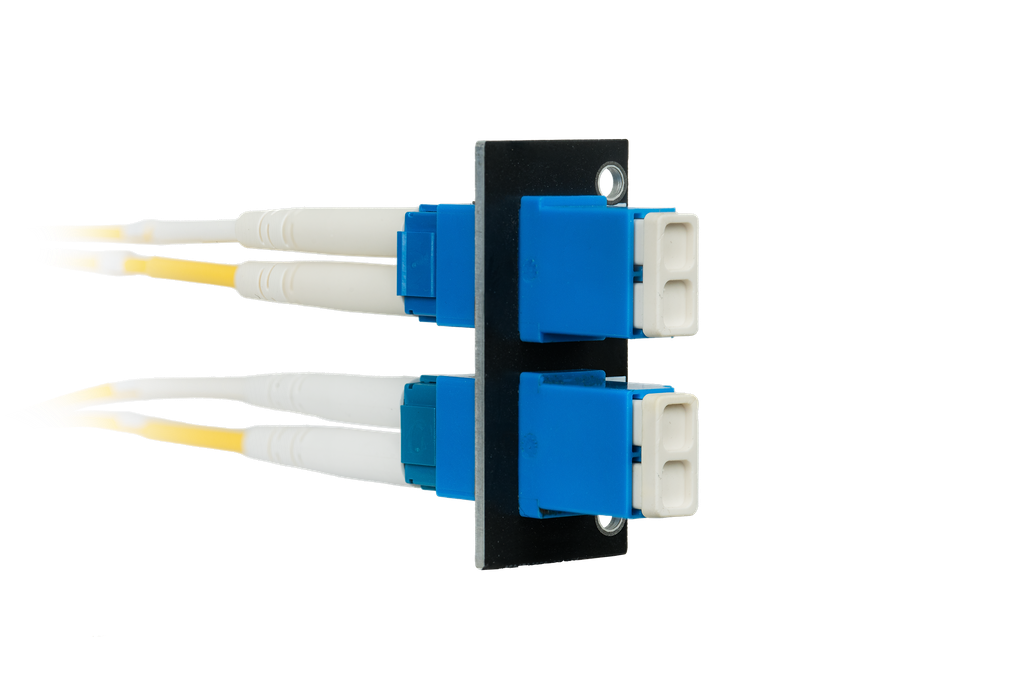

LC Port Module

#M-FLC         € 20

Available in 1 or 2 dual LC connector block.
Are used to bring LC connections to outside if you want to have certain fiber frequencies available for other hardware outside of the fiber mux.

Also the UPG port on the Frame4 & Frame8 are available trough a LC port Module.
